  • Cermet insert APMT1604PDER-H2

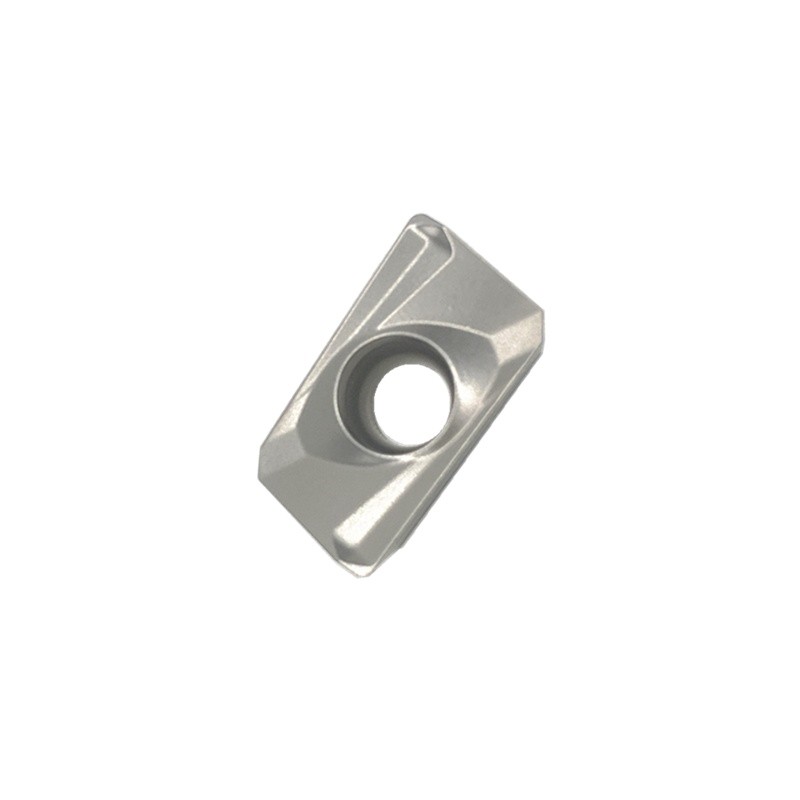

Cermet insert APMT1604PDER-H2

metal ceramic cutting tool insert  , high speed finishing  , sharp cutting
Inquiry Send Email

Description

Material Composition:
- Advanced Cermet (TiCN/TiN-based):  Ceramic matrix (TiC, TiN) reinforced with nickel/molybdenum binder, optimized for high-speed finishing.
- Nano-coating (Optional):  PVD TiAlN coating (3-5μm) for enhanced heat resistance (up to 900°C).

Key Features:
- High Hardness & Wear Resistance: HV 1800-2200, outperforms conventional carbide in semi-finishing to precision machining.
- Thermal Stability:  Minimal edge deformation at elevated temperatures, ideal for continuous cutting.
- Sharp Cutting Edge:  Ground edge geometry (ER rake angle) ensures smooth surface finish (Ra ≤0.8μm).
- Chipbreaker Design: PDER chip groove optimizes chip flow in steel and cast iron machining.

Applications:
- Precision Turning:  Finishing of carbon steel, alloy steel, and ductile cast iron.
- High-Speed Machining (HSM):  Automotive components (shafts, gears), aerospace fittings.
- Mass Production:  CNC lathe operations requiring tight tolerances (IT6-IT7).

 Advantages Over Competitors:
  30-50% longer tool life compared to uncoated carbide inserts.
  Reduced cutting forces for improved dimensional accuracy.
  Compatible with dry or minimum-quantity lubrication (MQL) machining.

Inquiry Us
